Hardware
- Full selection available for entire family of lifting solutions
- Hardware can often be reused for a cost savings
- Extends sling life
- Simplifies connection of the sling to the load and crane hook
- Custom options available
Wire Rope Sling Hardware
Please view our catalog for more information and safety warnings. Refer to the safety warning sheets provided with each product.
Download our Wire Rope Sling Hardware catalog Find a Distributor
Screw Pin Shackles
- Carbon shackles, with alloy pin
- Heat Treated and tempered
- Hot dip galvanized
| Shackle Size (in.) | 3/16 | 1/4 | 5/16 | 3/8 | 7/16 | 1/2 | 5/8 | 3/4 | 7/8 | 1 | 1-1/8 | 1-1/4 | 1-3/8 | 1-1/2 | 1-5/8 | 1-3/4 | 2 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Capacity* (tons) | CM | 1/2 | 3/4 | 1 | 1-1/2 | 2 | 3 | 4-1/2 | 6-1/2 | 8-1/2 | 10 | 12 | 14 | 17 | 20 | 24 | 30 | 35 |
| Others | 1/3 | 1/2 | 3/4 | 1 | 1-1/2 | 2 | 3-1/4 | 4-3/4 | 6-1/2 | 8-1/2 | 9-1/2 | 12 | 13-1/2 | 17 | 20 | 25 | 35 | |
*Do not exceed rated capacities. Sling capacity decreases as the angle from horizontal decreases. Do not use slings at angles of less than 30°. Refer to the Effect of Angle chart found in the General Information section of our catalog.
Shackle Pad
- Prevents possible injury to personnel
- Costs less to replace than expensive rigging hooks
- Quick Installation
- Light weight construction
- Prevents possible equipment damage
| Shackle Size (in.) | 5/8 | 3/4 | 1 | 1-1/4 | 1-1/2 | 1-3/4 | 2 | 2-1/2 | 3 |
|---|---|---|---|---|---|---|---|---|---|
| Part Number | 58SP | 34SP | 1SP | 114SP | 112SP | 134SP | 2SP | 212SP | 3SP |
*Shackles commonly contain screw threads and inlets to pin openings. These edges need to be guarded against contact with synthetic slings. Always use shackle pads in these areas to prevent possible equipment damage or injury to personnel from a loss of load.
Alloy Oblong Master Link
| Oblong Size (dia.) | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 1-3/4 | 2 | 2-1/4 | 2-3/4 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | 12DOL | 34DOL | 1DOL | 114DOL | 112DOL | 134DOL | 2DOL | 214DOL | 234DOL | |
| 1Rated Capacity* | Tons | 3.0 | 6.6 | 11.2 | 16.2 | 24.5 | 36.7 | 44.4 | 62.6 | 93.9 |
| lbs. | 6,100 | 13,200 | 22,400 | 32,400 | 49,000 | 73,400 | 88,800 | 125,200 | 187,800 | |
1Rated Capacity also referred to as Working Load Limit.
*Do not exceed rated capacities. Sling capacity decreases as the angle from horizontal decreases. Do not use slings at angles of less than 30°. Refer to the Effect of Angle chart found in the General Information section of our catalog.

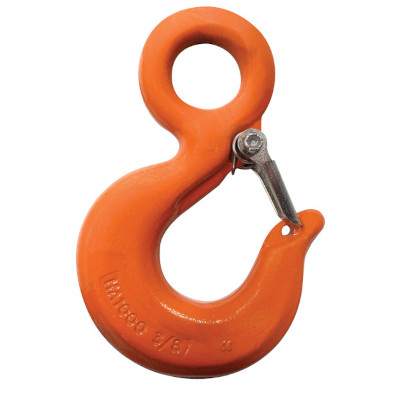

Rigging Eye Hooks
- Drop forged alloy steel.
- Load rating marked on each hook body.
- Pre-drilled latch tab allows the addition of a heavy-duty latch.
- May also be used on Tuflex® Bridle Roundslings and Web Bridle Slings
Sorting Hooks
- Quenched and tempered alloy steel.
- Long tapered point designed for easy grab in rings, pear links, eye bolts or lifting holes.
- Durable powder-coated finish.
- Do not load the last 1" of the tip.
- WLL at tip: 2.0-Ton
- WLL at bowl: 7.5-Ton
Latchlok Eye Hooks
- Heavy-duty latch with lock prevents accidental opening.
- Drop forged alloy steel.
- Durable powder-coated finish.
Swivel Eye Latchlok Hooks with Bushings
- Hook swivels beneath the eye.
- Heavy-duty latch with lock prevents accidental opening.
- Durable powder-coated finish.
- Positive locking hook.
Swivel Eye Rigging Hooks
- Pre-drilled for latches.
- Heat-treated, quenched and tempered.
- Design factor 5:1.
- Shown with optional latch.
Sliding Choker Hooks
- Reduces sling wear when used with thimbles. When used on multi-part slings, contact Lift-All for information.
- Saddle is rounded to minimize wear.
- Hook opening is large enough to take a galvanized plow steel thimble the same size as the hook size.
Chain Sling Hardware
Please view our catalog for more information and safety warnings. Refer to the safety warning sheets provided with each product.
Download our Chain Sling Hardware catalog Find a Distributor
Oblong Master Link - Code O
- For use with both G80 and G100 chain, web bridle and Tuflex bridle slings.
- 100% proof-tested.
- May be used for mechanical and welded sling assemblies.
- Durable powder-coated finish.
| Part Number | 1332DOL | 12DOL | 34DOL | 1DOL | 114DOL | 112DOL | 134DOL | 2G8OL | 214G8OL | 234G8OL | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Master Link Size* (in.) | 13/32 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 1-3/4 | 2 | 2-1/4 | 2-3/4 | |
| Standard Size & Config. for Chain Sling | Single | 7/32 | 9/32 | 3/8 | 1/2 or 5/8 | 3/4 | 7/8 | 1 | 1-1/4 | - | - |
| Double | 7/32 | 9/32 | 3/8 | 1/2 | 5/8 | 3/4 | 7/8 | 1 | 1-1/4 | - | |
| Triple | - | 7/32 | 9/32 | 3/8 | 1/2 | 5/8 | 3/4 | 7/8 | 1 | 1-1/4 | |
| Quad | - | 7/32 | 9/32 | 3/8 | 1/2 | 5/8 | 3/4 | 7/8 | 1 | 1-1/4 | |
*Do not exceed rated capacities. Sling capacity decreases as the angle from horizontal decreases. Do not use slings at angles of less than 30°. Refer to the Effect of Angle chart found in the General Information section of our catalog.
Mechanical Coupling Links
- Used for overhead lifting slings to connect chain branches to the master link and to the hook attachments.
- Constructed of drop-forged alloy steel.
- Can be used with G80 and G100 chain.
- Must be matched to chain size.
- Meets ASTM A952 standards.
| Grade | Chain Size (in.) | 1Rated Capacity*(lbs.) | Part Number |
|---|---|---|---|
| 100 | 7/32 | 2,700 | 732G10H |
| 100 | 9/32 | 4,300 | 932G10H |
| 100 | 3/8 | 8,800 | 38G10H |
| 100 | 1/2 | 15,000 | 12G10H |
| 100 | 5/8 | 22,600 | 58G10H |
| 100 | 3/4 | 35,200 | 34G10H |
| 80 | 7/8 | 34,200 | 78G8H |
| 80 | 1 | 47,700 | 1G8H |
| 80 | 1-1/4 | 72,300 | 114G8H |
1Rated Capacity also referred to as Working Load Limit.
*Do not exceed rated capacities. Sling capacity decreases as the angle from horizontal decreases. Do not use slings at angles of less than 30°. Refer to the Effect of Angle chart found in the General Information section of our catalog.

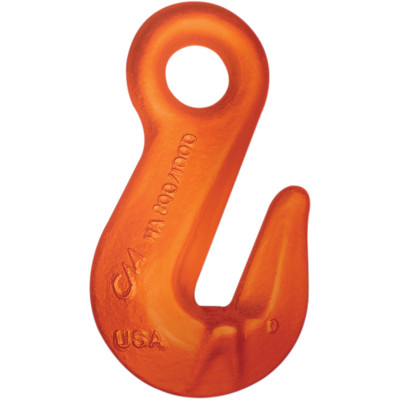

Eye Cradle Grab Hook
- For use with both G80 & G100 chain.
- Fatigue rated.
- 100% proof-tested.
- Durable powder-coated finish.
- Quenched and tempered alloy steel.
- Unique cradle grab design.

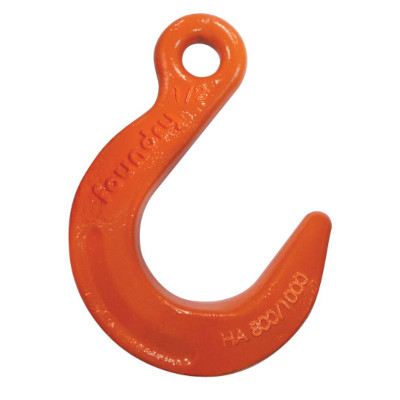

Foundry Hook
- For use with both G80 & G100 chain.
- Unique cradle grab design.
- Quenched and tempered alloy steel.
- 100% proof-tested.
- Fatigue rated.
- Durable powder-coated finish.
Eye Latchlok Hooks
- Large eye design for use with G80 and G100 chain.
- 100% proof-tested.
- Positive locking hook.
- Meets ASTM A952 standards.
- Durable powder-coated finish.

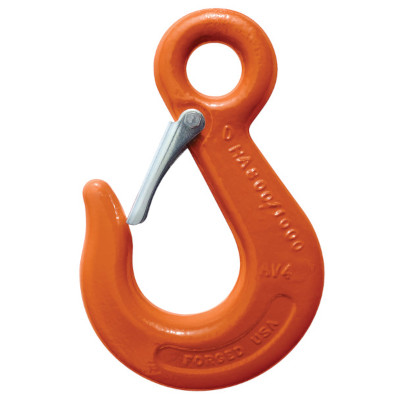

Chain Sling Eye Hook
- For use with both G80 and G100 chain.
- Quenched and tempered alloy steel.
- Fatigue rated.
- 100% proof-tested.
- Shown with optional latches.

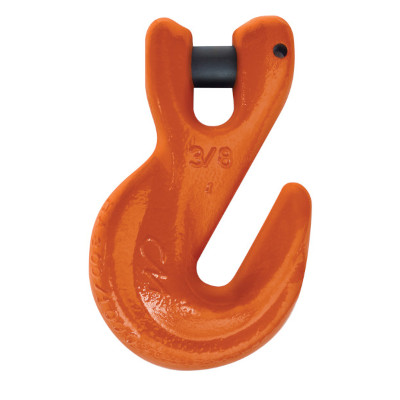

Clevis Cradle Grab Hook
- For use with both G80 and G100 chain.
- Unique cradle grab design.
- 100% proof-tested.
- Quenched and tempered alloy steel.
- Fatigue rated.
- Durable powder-coated finish.
- Replacement pin available.

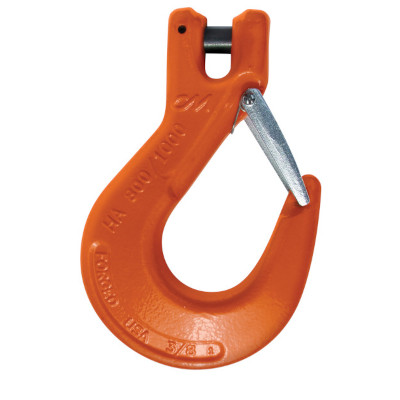

Clevis Sling Hook
- For use with both G80 and G100 chain.
- 100% proof-tested.
- Fatigue rated.
- Unique cradle grab design.
- Replacement pin available.
- Durable powder-coated finish.
- Quenched and tempered alloy steel.
