Web Slings
Why Lift-All® Web Slings?
Lift-All web slings meet or exceed OSHA, ASME B30.9 and WSTDA standards and regulations. All sling webbing contained in this section is recommended for general-purpose lifting. Sling webbing has surface yarns connected from side to side, which not only protect the core yarns but also position the surface and tensile yarns to work together to support the load. Wear or damage to sling webbing face yarns causes immediate strength loss. Sling webbing has red core yarns to visually reveal damage which is one indicator of sling rejection. Please read the warning sheet provided with each sling for additional details.
An edge does not need to be sharp to cause damage to the sling. Lift-All slings now show an edge radius on the sling’s Tuff-Tag™. Use Lift-All’s RAD-MAN™ tool to measure the edge radius and lift confidently.
- Standard Web Slings
- Tuff-Edge® III & Webmaster® 1600
- Hardware Slings
- Webmaster® 1200
- Web Bridle Slings
- GripHook®
- Pipe & Hose Halters™
- Special Web Products
- Sling Racks
Web SlingsHardware Web Slings
Unilink™ and Web-Trap™ hardware can help to extend sling life by protecting the webbing from abrasion on rough crane hooks. Hardware can often be reused, lowering sling replacement costs.

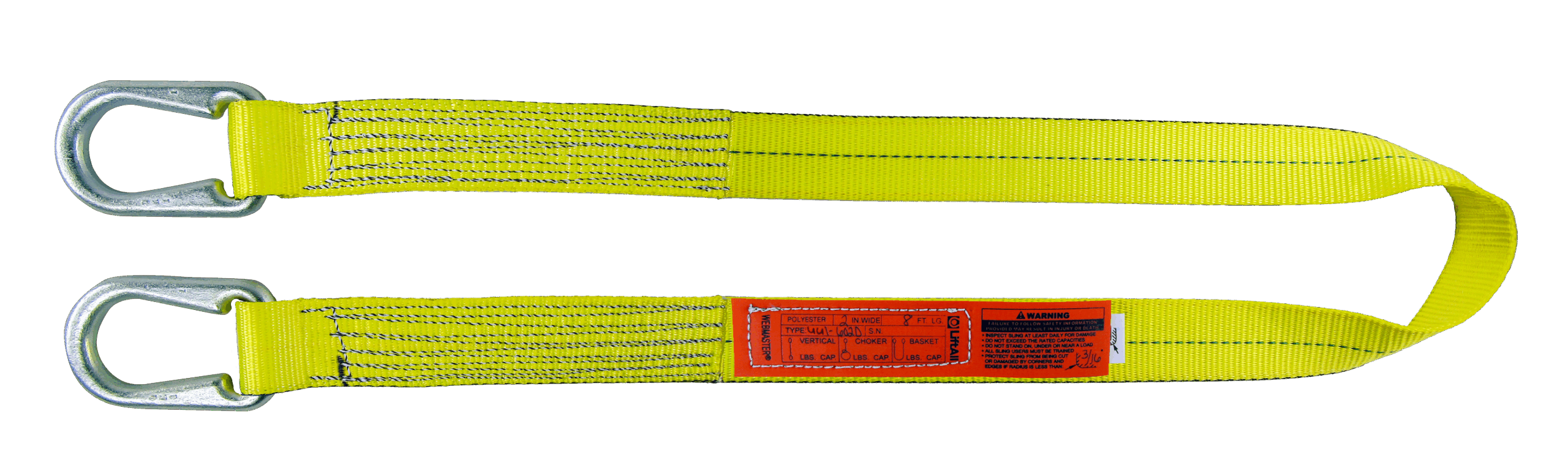

Type U (UU) – Has the preferred and economical Unilink fitting with Web-Trap on each end for use in a vertical, choker or basket hitch. Unilinks allow choking from either end to save time and vary wear points.

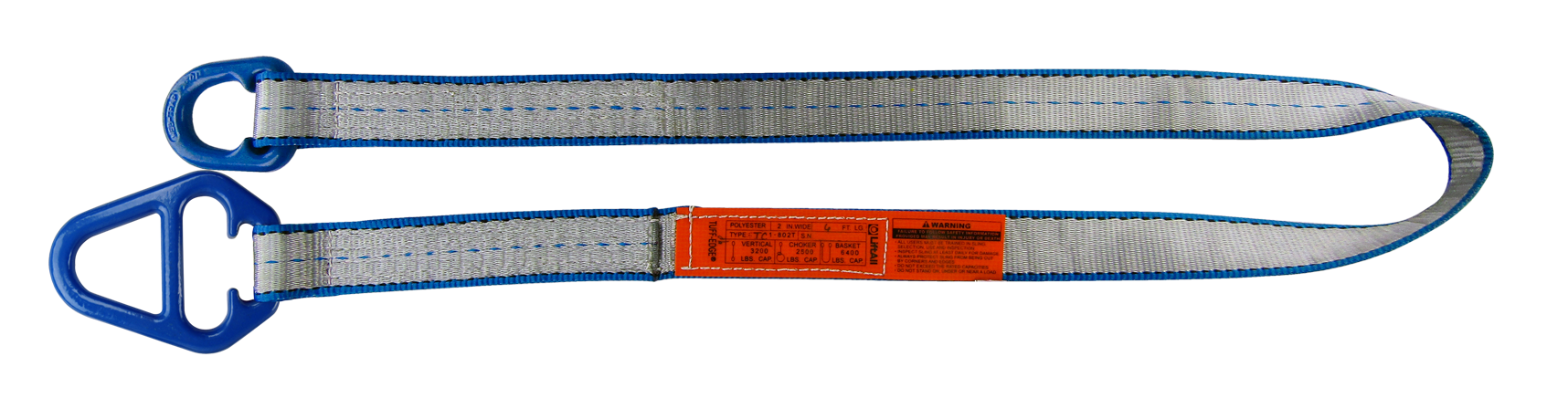

Type 1 (TC) – Has a Web-Trap triangle on one end and choker on the other end. Typical use is in a choker hitch, these slings can also be used in vertical and basket hitches.

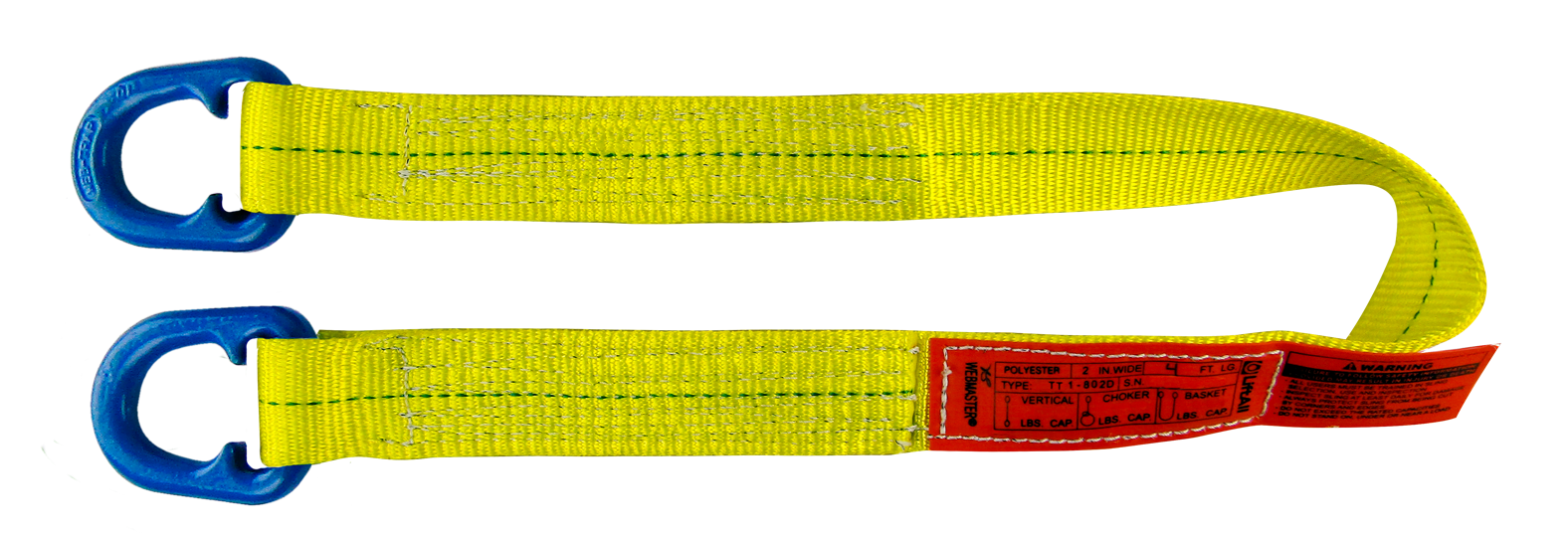

Type 2 (TT) – Has a Web-Trap triangle on each end. Normally used in a basket hitch but can also be used in a vertical hitch. Cannot be used as a choker.
Eye/Eye Web Slings
Type 3 (EE) – Flat Eye slings are very popular and can be used in all three types of hitches. They are easier to remove from beneath the load than sling Types 1, 2 and 4. Type 3 will be supplied as the standard EE sling, unless Type 4 is requested.
Type 4 (EE) – Twisted Eye slings are similar to Type 3 except the eyes are turned 90°. The eyes of a Type 4 nest easily on the crane hook. Reverse the eyes to allow more even wear in eyes.
Endless Web Slings
Type 5 (EN) – Endless slings are versatile and the most economically priced. They can be used in all three types of hitches. The sling can be rotated to minimize wear. The sling legs can be spread for improved load balance.
Reverse Eye Web Slings
Type 6 (RE) – An endless sling with butted edges sewn together to double the sling width. They have reinforced eyes and wear pads on both sides of body and eyes for premium wear resistance.
Bridle Web Slings
Bridles – Bridle slings are useful when fixed lifting points are available. The standard web material for bridles is, Tuff-Edge III, which helps prevent sling damage and offers proven reliability. Available as single to
quad-leg and wider widths up to 12″.Wide-Lift Web Slings
Wide-Lift – Lift-All Wide-Lift slings support the load over a wide area to offer better balance – whether heavy or light. The wide bearing area reduces marring of soft load surfaces. Stiffeners at the base of the eyes deter the body webbing from folding down the middle.
Download our Web Slings catalog
-

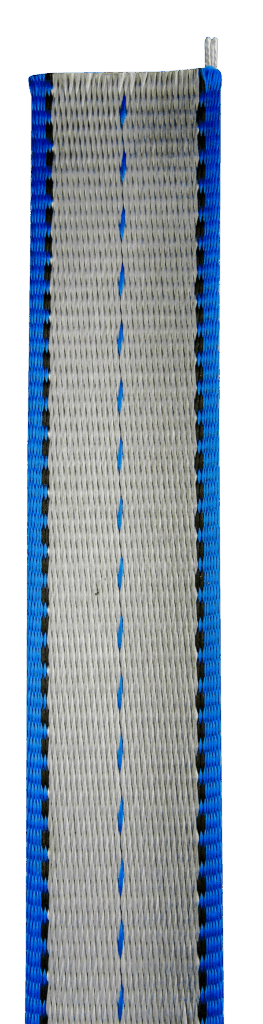

Tuff-Edge III
Patent #
10,494,231 Out of Service Marker
11,021,346 Edge Protection
D908,362 Web Design- Suitable for light to heavy duty applications.
- Identified by silver body and blue edges with Edge Damage Limit (EDL) markers and center stripe.
- Available in 1” to 12″ widths and 1-4ply.
- 30% more resistant to edge damage than our Tuff-Edge II webbing.
- Tubular edge design with damage-resistant core helps protect the body fibers from cutting, keeping the integrity of the sling intact without compromising its strength.
Webmaster 1600 Nylon & Polyester Slings
Webmaster 1600 is our most popular web due to strength and service life. This versatile workhorse can be designed in many configurations for a wide variety of lifting applications.- Available in 1” to 12″ widths and 1-4ply.
- Red core yarn warning system aids in the inspection process.
- Suitable for moderate duty applications.
- Polyester stretches less for better load control and reduced abrasion.
- Nylon stretches more to help avoid shock loading.

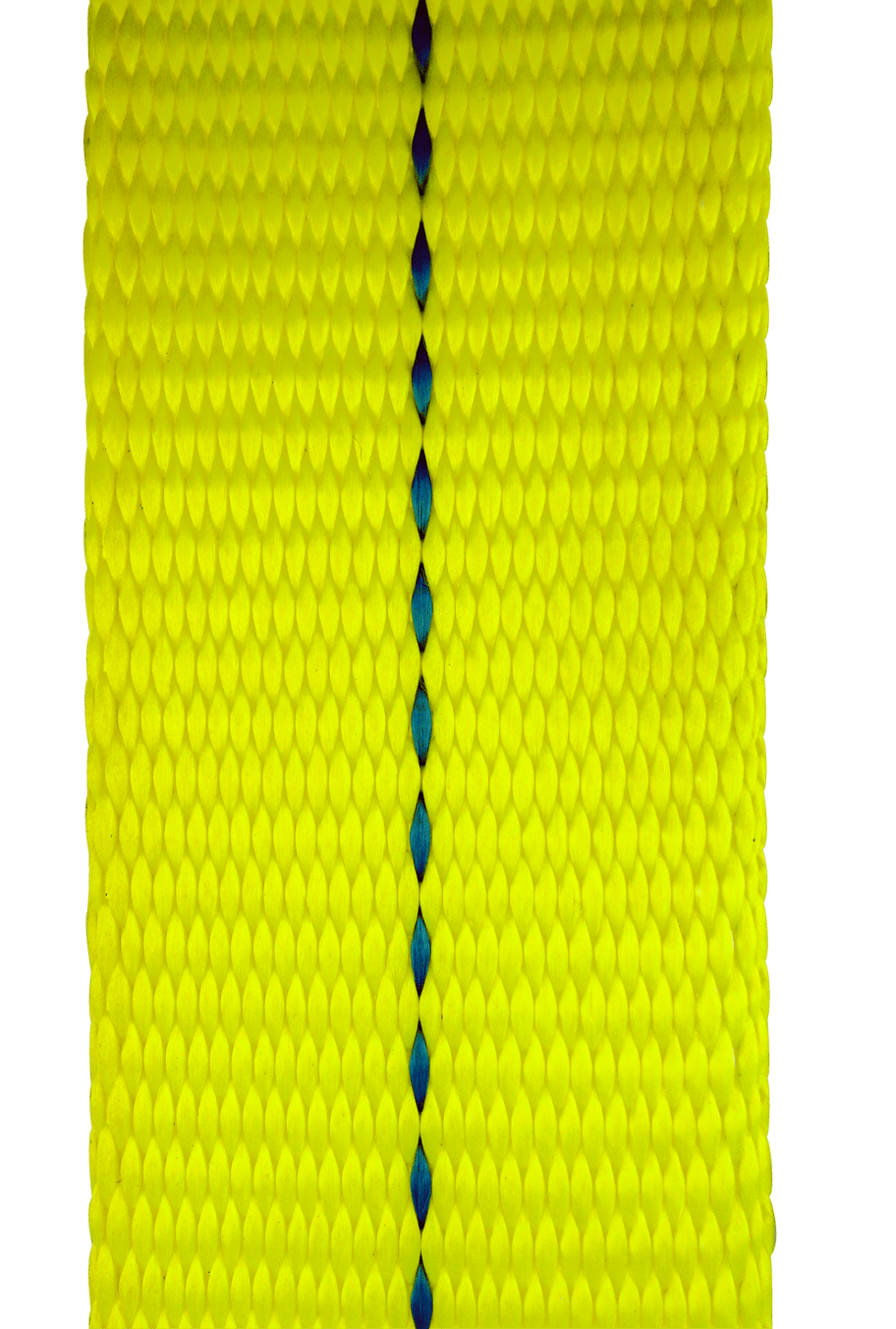

- Polyester is identified with a yellow body and blue center stripe. Nylon is yellow with no center stripe.
Tuflex® is an alternative for 3-ply and 4-ply slings wider than 6″, Tuflex Roundslings should be seriously considered. Tuflex offers increased flexibility, ease of use and lower cost.
Eye/Eye Web Sling Capacities Ply Tuff-Edge III Part No. Webmaster 1600 Polyester Part No. Webmaster 1600 Nylon Part No. Rated Capacity* (lbs.) Vertical Choker Basket 1 Ply EE1801TF EE1801DF EE1801NF 1,600 1,280 3,200 EE1802TF EE1802DF EE1802NF 3,200 2,500 6,400 EE1803TF EE1803DF EE1803NF 4,800 3,800 9,600 EE1804TF EE1804DF EE1804NF 6,400 5,000 12,800 EE1806TF EE1806DF EE1806NF 9,600 7,700 19,200 EE1808TF EE1808DF EE1808NF 12,800 10,200 25,600 EE1810TF EE1810DF EE1810NF 16,000 12,800 32,000 EE1812TF EE1812DF EE1812NF 19,200 15,400 38,400 2 Ply EE2801TF EE2801DF EE2801NF 3,200 2,500 6,400 EE2802TF EE2802DF EE2802NF 6,400 5,000 12,800 EE2803TF EE2803DF EE2803NF 8,800 7,040 17,600 EE2804TF EE2804DF EE2804NF 11,500 9,200 23,000 EE2806TF EE2806DF EE2806NF 16,500 13,200 33,000 EE2808TF EE2808DF EE2808NF 19,200 15,400 38,400 EE2810TF EE2810DF EE2810NF 22,400 17,900 44,800 EE2812TF EE2812DF EE2812NF 26,900 21,500 53,800 Replace the F with a T for Twisted Eyes (Type 4). Eyes on Type 3 and Type 4 slings are tapered at 3″ and wider, unless otherwise specified.
Endless Web Sling Capacities Ply Tuff-Edge III Part No. Webmaster 1600 Polyester Part No. Webmaster 1600 Nylon Part No. Rated Capacity* (lbs.) Vertical Choker Basket 1 Ply EN1801T EN1801D EN1801N 3,200 2,500 6,400 EN1801T EN1801D EN1801N 6,400 5,000 12,800 EN1801T EN1801D EN1801N 8,800 7,040 17,600 EN1801T EN1801D EN1801N 11,500 9,200 23,000 EN1801T EN1801D EN1801N 16,500 13,200 33,000 EN1801T EN1801D EN1801N 19,200 15,400 38,400 EN1801T EN1801D EN1801N 22,400 17,900 44,800 EN1801T EN1801D EN1801N 26,900 21,500 53,800 2 Ply EN2801T EN2801D EN2801N 6,200 4,900 12,400 EN2801T EN2801D EN2801N 12,400 9,900 24,800 EN2801T EN2801D EN2801N 16,300 13,000 32,600 EN2801T EN2801D EN2801N 20,700 16,500 41,400 EN2801T EN2801D EN2801N 30,500 24,400 61,000 EN2801T EN2801D EN2801N 40,000 32,000 80,000 EN2801T EN2801D EN2801N 47,000 37,600 94,000 EN2801T EN2801D EN2801N 56,000 44,800 112,000 Note: Type 5 (Endless) slings are not tapered unless specified.
*WARNING: Do not exceed rated capacities. Sling tension increases as the angle from horizontal decreases. Slings should not be used at angles of less than 30°. Refer to the Effect of Angle chart in the General Information section of the Lift-All catalog. Always protect synthetic slings from being cut by corners and edges. See the Sling Protection section in the Lift-All catalog.Hardware Slings
Type U – Unilink™ Hardware Slings
Ply Web Width (in.) Tuff-Edge III Part Number ***Webmaster 1600 Polyester Part Number Rated Capacity* (lbs.) Vertical Choker Basket One Ply 2 UU1802T UU1802D 3,200 2,500 6,400 3 UU1803T UU1803D 4,800 3,800 9,600 4 UU1804T UU1804D 6,400 5,000 12,800 Two Ply 2 UU2802T UU2802D 6,400 5,000 12,800 3 UU2803T UU2803D 8,800 7,040 17,600 4 UU2804T UU2804D 11,500 9,200 23,000 Note: Unilink is the standard fitting for widths 2″-4″ triangle and chokers available on special order only.
Type 1 (TC) & Type 2 (TT) Web-Trap™ Hardware Slings
Type 1 – Triangle & Choker
Type 2 – Triangle & Triangle Ply Web Width (in.) Tuff-Edge III
Part Number***Webmaster 1600
Polyester Part Number***Rated Capacity* (lbs.) Type 1 Type 2** Type 1 Type 2** Vertical Choker Basket One Ply 6 TC1806T TT1806T TC1806D TT1806D 9,600 7,700 19,200 8 TC1808T TT1808T TC1808D TT1808D 12,800 10,200 25,600 10 TC1810T TT1810T TC1810D TT1810D 16,000 12,800 32,000 12 TC1812T TT1812T TC1812D TT1812D 19,200 15,400 38,400 16 TC1816T TT1816T TC1816D TT1816D 25,500 20,400 51,000 Two Ply 6 TC1806T TT1806T TC1806D TT1806D 16,800 13,400 33,600 8 TC1808T TT1808T TC1808D TT1808D 22,400 17,900 44,800 10 TC1810T TT1810T TC1810D TT1810D 28,000 22,400 56,000 12 TC1812T TT1812T TC1812D TT1812D 33,600 26,800 67,200 16 TC1816T TT1816T TC1816D TT1816D 44,800 35,800 89,600 *WARNING: Do not exceed rated capacities. Sling tension increases as the angle from horizontal decreases. Slings should not be used at angles of less than 30°. Refer to the Effect of Angle chart in the General Information section of the Lift-All catalog. Always protect synthetic slings from being cut by corners and edges. See the Sling Protection section in the Lift-All catalog.
** Type 2 (TT) cannot be used in a choker hitch.
*** To order aluminum hardware, single ply 2″ – 6″ only, add A after TC or TT.Webmaster 1200 Web Slings
Light to moderate duty Webmaster 1200 is designed as an economical sling for less frequent use.
- Red core yarn warning system aids in the inspection process.
- Tuff-Tag™ provides serial numbered identification for traceability.
- Economical option for less frequent use.
- Yellow treatment for abrasion resistance and extended sling life.
- Polyester stretches less for better load control, reduced abrasion.
- Nylon stretches more to help avoid shock loading.
- Polyester Webmaster 1200 is identified by with a yellow body, black edge
marker and blue center stripe. Nylon does not have a center stripe.
Ply Webmaster 1200 Polyester Part Number Rated Capacity Vertical Choker Basket Hardware Slings+ Types U, 1 & 2 One Ply UU1602D 2,400 1,900 4,800 UU1603D 3,600 2,900 7,200 UU1604D 4,800 3,800 9,600 TC1606D 7,200 5,800 14,400 TT1606D 7,200 – 14,400 Two Ply UU2602D 4,800 3,800 9,600 UU2603D 6,600 5,280 13,200 UU2604D 8,600 6,900 17,200 TC2606D 12,600 10,100 25,200 TT2606D 12,600 – 25,200
Eye / Eye
(Types 3 & 4)**
One Ply EE1601DF 1,200 950 2,400 EE1602DF 2,400 1,900 4,800 EE1603DF 3,600 2,900 7,200 EE1604DF 4,800 3,800 9,600 EE1606DF 7,200 5,800 14,400 Two Ply EE2601DF 2,400 1,900 4,800 EE2602DF 4,800 3,800 9,600 EE2603DF 6,600 5,280 13,200 EE2604DF 8,600 6,900 17,200 EE2606DF 12,300 9,840 24,600
Endless (Type 5)
One Ply EN1601D 2,400 1,900 4,800 EN1602D 4,800 3,800 9,600 EN1603D 6,500 5,200 13,000 EN1604D 8,600 6,900 17,200 EN1606D 12,200 9,800 24,400 Two Ply EN2601D 4,800 3,800 9,600 EN2602D 9,600 7,700 19,200 EN2603D 11,700 9,400 23,400 EN2604D 15,500 12,400 31,000 EN2606D 22,500 18,000 45,000 Note: Types 3 and 4 slings are tapered at 3″ and wider unless otherwise specified. Type 5 (Endless) slings are NOT tapered unless specified.
+ Unilink is the standard fitting for widths 2″-4″ triangle and chokers available on special order.
**Replace the F with a T for Twisted Eyes.
*WARNING: Do not exceed rated capacities. Sling tension increases as the angle from horizontal decreases. Slings should not be used at angles of less than 30°. Refer to the Effect of Angle chart in the General Information section of the Lift-All catalog. Always protect synthetic slings from being cut by corners and edges. See the Sling Protection section in the Lift-All catalog.
Web Bridle Slings
Web Bridle Slings are useful when fixed lifting points are available.
- Tuff-Edge® III web material is standard; helps prevent sling damage.
- Better load control and balance by using fixed connection points and multiple legs.
- Standard oblong links and hooks are forged from alloy steel for strength and reliability.
- Lighter weight and easier to use than chain or wire rope.
- Sling hooks quickly connect to loads having hoist rings or eye bolts.
- Sling hooks and links can be re-webbed.
- Tuff-Tag™ provides required OSHA information for the life of the sling.
- Tapered eyes for better sling leg equalization, standard for 2″ or wider
Part No. for Web Sling Legs Web Width (in.) Web Plies Number of Legs Rated Capacity* (lbs.) Vertical Choker Basket 60° 45° 30° EE1801 1 1 Single 1,600 1,280 3,200 – – – Double – – – 2,700 2,200 1,600 Triple – – – 4,100 3,300 2,400 Quad – – – 5,500 4,500 3,200 EE2801 1 2 Single 3,000 2,400 6,000 – – – Double – – – 5,100 4,2000 3,000 Triple – – – 7,700 6,300 4,500 Quad – – – 10,300 8,400 6,000 EE1802 2 1 Single 3,000 2,400 6,00 – – – Double – – – 5,100 4,2000 3,000 Triple – – – 7,700 6,300 4,500 Quad – – – 10,300 8,400 6,000 EE2802 2 2 Single 6,000 4,800 12,000 – – – Double – – – 10,300 8,400 6,000 Triple – – – 15,500 12,700 9,000 Quad – – – 20,700 16,900 12,000 *WARNING: Do not exceed rated capacities. Sling tension increases as the angle from horizontal decreases. Slings should not be used at angles of less than 30°. Refer to the Effect of Angle chart in the General Information section of the Lift-All catalog. Always protect synthetic slings from being cut by corners and edges. See the Sling Protection section in the Lift-All catalog.
GripHook®Lift-All’s patented GripHook design converts your forklift into an overhead lifting device in a matter of seconds. This is a must for contractors, manufacturing plants, power plants, distribution centers, rental houses, and any other facility using forklifts.
The self-gripping design allows the GripHook to tighten around the fork when a load is applied. The easy to attach GripHook does not require any tools to install.
This economical solution is made from high quality synthetic materials saving you money, without compromising lift capacity.
- Convert your forklift into an overhead lifting device in a matter of seconds.
- Quick to install, remove, and store
- Self-gripping to the fork, so there is no need to tighten attachment, saving you time!
- 1-Ton & 2-Ton options
Part Number Capacity Description GH4S-1 1-TON GripHook w/ Swivel Hook for 4″ Fork GH5S-1 1-TON GripHook w/ Swivel Hook for 5″ Fork GH6S-1 1-TON GripHook w/ Swivel Hook for 6″ Fork GH5S-2 2-TON GripHook w/ Swivel Hook for 5″ Fork GH6S-2 2-TON GripHook w/ Swivel Hook for 6″ Fork GH8S-2 2-TON GripHook w/ Swivel Hook for 8″ Fork
Pipe & Hose HaltersHelp protect your workers from injury and your equipment from damage.
When pipe or hose couplings fail under pressure, Lift-All Hose Halters minimize thrashing to reduce equipment damage and personal injury. Suitable for use on pneumatic, water, and hydraulic pipes and hoses, these easy to install straps are made from strong, flexible nylon webbing. Slide the rubber grommets to keep choked eyes snug on the hose. The standard lengths will accommodate pipes and hoses with inside diameters of 1/4″ up to 6″. Meets both OSHA and Canada OHS requirements for restraining devices on pipe and hose connections.
Available in nylon and polyester. Call for pricing.
- Help to control hoses that accidentally separate at the coupler while under pressure.
- Suitable for use on pneumatic, water and hydraulic hoses.
- Integral rubber grommets to keep choked eyes snug on the hose.
- Conforms to OSHA 1926.603(a)(10) and Canada OHS requirements.
Special Web Products
Vertical Drum Handling Slings
Lift-All drum handling slings provide an easy, inexpensive way to handle steel drums. Available in two styles to suit your needs a vertical or horizontal position.
- For use with ribbed steel drums, the ratcheting belly band tightens securely below the first rib.
- A wear pad is sewn on the inside of the lifting strap to prevent damage.
- The free end of the ratchet strap is sewn to stay threaded.
Horizontal Drum Handling Sling is also available, part number DSH601D. The Horizontal style uses 1″ polyester sling webbing and is rated for 1,500 lbs.

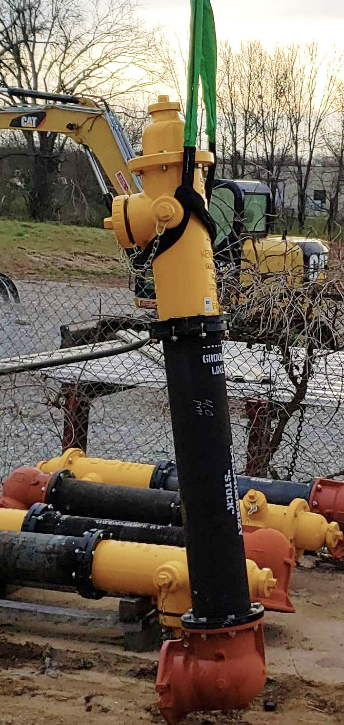

Hydrant Sling
This synthetic sling is used to grasp fire hydrants in a safe and secure manner. The self-choking feature offers additional security and safety. It fits over any size discharge outlet or side valve system and is designed to lift under the valve body, not the valve stem.- Lightweight and available in two lengths; 4′-6″ and 7′-6″
- Perfect for safe handling of fire hydrants.
- Will not rust and protects the hydrant finish while lifting
- Easy to store
- 4,000 lbs. capacity
- Part Number’s HEN60 and HEN6076

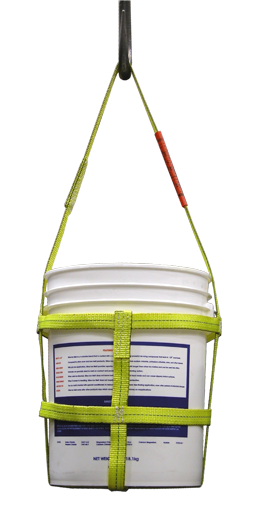

Bucket Sling
Lift-All Bucket Slings are designed to lift 5-gallon buckets filled with up to 200 pounds of material.- Made from 1″ wide yellow polyester sling webbing.
- Rated capacity: 200 lbs.
- Designed for buckets with an 11″ diameter base.
- Two belly bands keep bucket secure.
- Overall sling height is 28″.
- Custom sizes available.
Part Number: BS5 weight: 0.8 lbs.

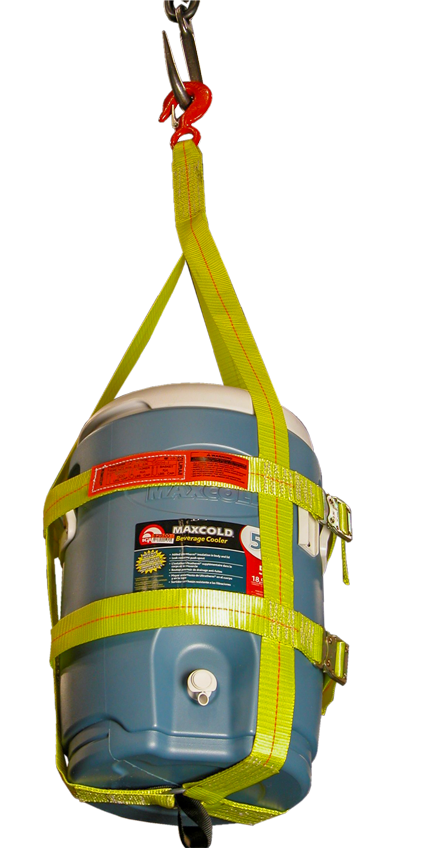

Cooler Sling
Lift-All Cooler Slings adjust to lift 3, 5, or 10-gallon water coolers safely to elevated workstations. Save time and connect multiple slings.- Rated Capacity: 500 lbs.
- Easily attachment of additional cooler slings from the bottom loop.
- Overall sling height is 44″.
Hook Top Part Number: CSH10 weight: 4.3 lbs.

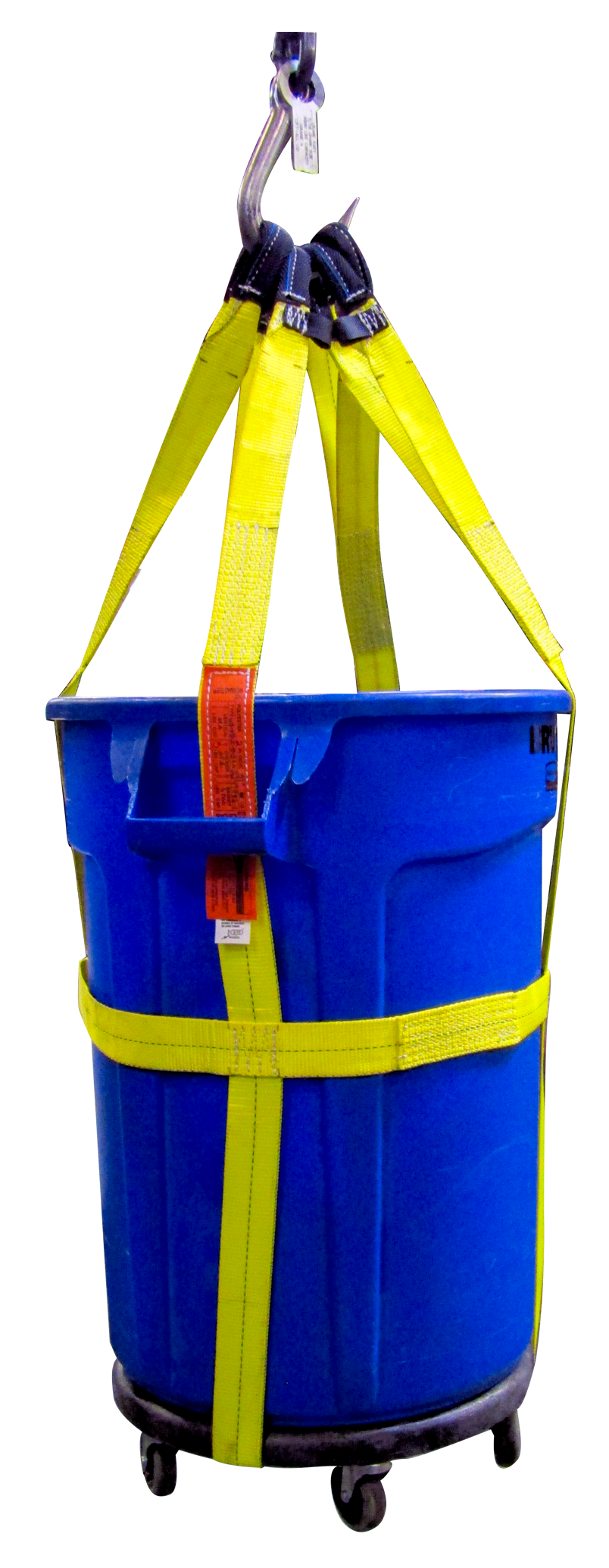

Eye Top Part Number: CSE10 weight: 3.3 lbs.Trash Barrel Sling
Lift-All Trash Barrel Slings make it easy to lift 32-gallon plastic trash barrels with your overhead crane.- Made from 2″ wide yellow polyester sling webbing.
- Rated capacity: 1,000 lbs.
- Overall sling height is 51″.
- Individual sling legs secure trash barrel to the sling through both handles.
- Custom sizes available.
Part Number: TBS32 weight: 3 lbs.

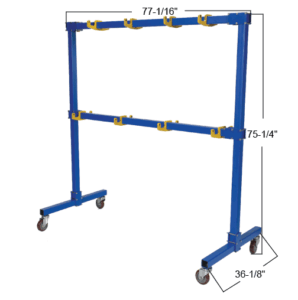

Sling Racks- Strong Steel Construction
- Adjustable Double Hooks
- Stationary and Mobile models available
- 2,000 lbs. Capacity
- Eight (8) Double Hooks Included
- Optional Hook Lock and Extra Hooks available

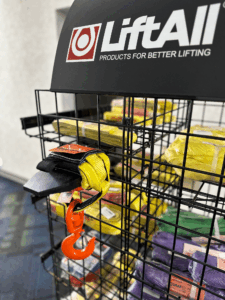

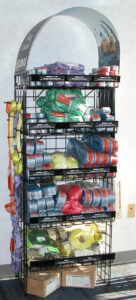

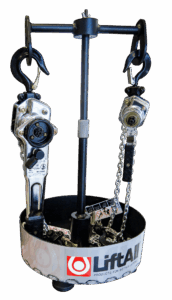

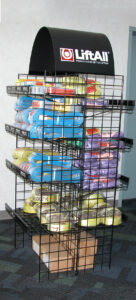

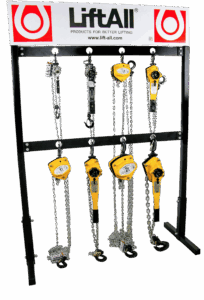

Marketing Displays
FREE marketing display with a qualifying order.
Lift-All offers marketing displays that are ideal for showrooms to easily showcase Lift-All products. Talk with Lift-All customer service today for qualifying order details.Sling Central P.O.P GripHook Add-On Hoist Display Rack Tabletop Hoist Display
Part Number
POP POP2 GRIPHOOK ADD-ON HOIST DISPLAY TABLETOPDISPLAY Dimensions (in.) 60X16.75X24 60X34X24 8X2 79X24X55 23 to Top Post 12″ Diameter
9.75″ Across Top Hanging Bar
